One sprinkler zone suddenly stops working. The rest of the sprinkler system runs normally. You check the controller, but nothing looks obviously wrong.
There’s a good chance you have an electrical problem somewhere between the controller and the valve.
Sprinkler wiring isn’t complicated, but finding the exact point of failure can be tricky. Most of the wiring sits underground, and several problems can cause similar symptoms.
Quick Takeaways
Sprinkler valves rely on low-voltage wiring from the controller.- Underground wires can break or become damaged.
- Moisture can corrode wiring connections and splices.
- Digging and landscaping are common causes of wire damage.
- A failed solenoid can look like a wiring problem.
- Controller problems can prevent power from reaching a valve.
- Electrical testing can help pinpoint the actual problem.
How Does Sprinkler Wiring Work?
A typical irrigation system uses low-voltage wiring to connect the controller to each sprinkler valve.
The basic circuit looks like this:
Controller → zone wire → solenoid → common wire → controller
When it’s time to water a zone, the controller sends power through that zone’s wire. The electrical signal energizes the solenoid on the valve. The valve opens, allowing water flow to the sprinkler heads in that zone.
The common wire completes the electrical circuit and is shared by multiple valves.
A damaged wire, loose connection, bad splice, failed solenoid, or controller problem can break that circuit. When that happens, the sprinkler valve may not open even though the rest of the irrigation system works normally.
Common Causes of Sprinkler Wiring Failure
Sprinkler wiring doesn’t usually fail for no reason. Something has damaged the wire or interrupted the electrical circuit.
Here are seven common causes…
1. Broken Underground Wires
Most sprinkler wires spend their lives underground. That protects them from everyday activity, but it doesn’t make them indestructible.
Wires can deteriorate with age. Soil movement can put stress on them. Roots and landscaping work can also cause physical damage.
A complete break stops the electrical signal from reaching the valve. Partial damage can be more frustrating because the sprinkler zone may work sometimes and fail at other times.
The location of the break isn’t always obvious either. The controller could be 50 feet away from the affected valve with the damaged section hiding somewhere in between.

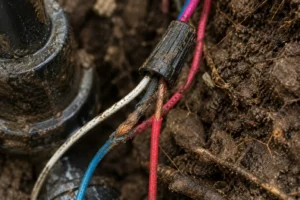

2. Corroded Wire Connections
Water and electrical connections aren’t exactly best friends.
Sprinkler systems operate in a wet environment by design. Valve boxes can collect water and soil. Rain and irrigation runoff can also expose wiring connections to moisture.
Proper connections are designed to handle these conditions. Poorly protected connections may eventually corrode.
As corrosion develops, electrical resistance can increase until the connection becomes unreliable or stops working entirely.
If you open a valve box and find corroded, loose, or dirty connections, you’ve found a good place to start troubleshooting.
3. Bad or Improper Wire Splices
Underground sprinkler wiring sometimes needs to be spliced. There’s nothing inherently wrong with that when the connection is made correctly.
The trouble starts when someone uses the wrong connectors or fails to protect the splice from moisture.
A sprinkler wire connection needs to survive underground conditions. Regular indoor wire nuts aren’t designed for a damp irrigation valve box.
A poor splice may work at first. Then moisture gets inside. Corrosion follows, and eventually the sprinkler zone isn’t working.
Proper waterproof connectors help protect common wiring connections from moisture and corrosion.
4. Landscaping and Digging Damage
This one happens more often than homeowners might expect.
Someone installs a new flower bed. A fence gets replaced. The lawn gets aerated. Then one sprinkler zone suddenly stops working.
The timing isn’t always a coincidence.
Common causes of accidental sprinkler wire damage include:
- Shovels
- Edgers
- Lawn aerators
- New landscaping
- Fence installation
- Utility work
Sprinkler wires can run through areas where homeowners don’t expect them. A shovel doesn’t need to slice a wire cleanly in half to cause trouble. Damage to the insulation can allow moisture into the wire and create problems later.
If an irrigation problem appears shortly after someone dug in the yard, mention that detail when scheduling sprinkler repair. It can help narrow the search considerably.
5. Rodent or Animal Damage
Animals can also cause sprinkler wiring problems.
Rodents may chew exposed wiring. Animals digging around valve boxes can disturb shallow wires or connections. Damage is especially possible when wires have already become exposed because of erosion, landscaping, or a damaged valve box.
Animal damage isn’t the first thing we’d suspect in every case. But it’s worth checking when wires are exposed or you see signs of digging around irrigation components.
6. Damaged Sprinkler Solenoids
Sometimes the wiring isn’t the problem at all.
The solenoid is the electrical component that receives the controller’s signal and operates the sprinkler valve. If the solenoid fails, the valve may not open when the controller activates the zone.
That can look almost identical to a broken wire.
One useful clue is whether the valve works when operated manually. If water pressure and water flow are normal when the valve opens manually, the problem may be somewhere in the electrical side of the system.
You still need testing to determine whether the culprit is the solenoid, wiring, controller, or another component.
Don’t replace underground wiring just because a zone won’t turn on. Diagnose the circuit first.
7. Controller or Electrical Problems
The problem can also start before the wiring ever reaches the yard.
A loose wire at the controller can interrupt the circuit. A damaged terminal may prevent a zone from receiving power. Controller components and transformers can fail as well.
Start with the simple stuff.
Check whether the controller has power. Look for loose or disconnected wires. See whether the display shows an error. Check whether other sprinkler zones work normally.
If several zones fail at once, pay particular attention to components shared by those zones, such as the controller or common wire.
How Do You Know If Sprinkler Wiring Is Bad?
Common signs of bad sprinkler wiring include one zone not turning on, intermittent operation, a valve that works manually but not from the controller, controller error messages, or a zone that stops working after digging or landscaping.
The key word is signs.
These symptoms don’t prove that you have a broken wire.
Low water pressure, valve problems, a failed solenoid, controller issues, and other sprinkler system problems can cause similar symptoms.
For example, a sprinkler zone with weak water flow probably needs a different diagnosis than a zone receiving no electrical signal at all.
That’s why testing matters. You want to find the actual failure instead of replacing parts and hoping one of them fixes the problem.
How Do Professionals Find Broken Sprinkler Wires?
Finding a damaged wire isn’t always as simple as looking for a cut cable. Most sprinkler wiring is underground.
A technician can work through the electrical system to determine where the signal stops.
That process may include:
- Visually inspecting the controller and valve box
- Testing output from the controller
- Checking voltage and resistance
- Testing the valve solenoid
- Inspecting wiring connections
- Using wire-tracing equipment
- Locating underground electrical faults
Testing helps separate a wiring problem from a bad solenoid or controller issue.

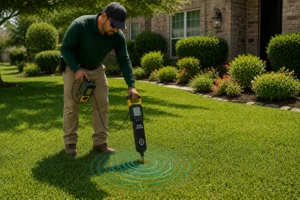

Wire-tracing equipment can also follow irrigation wiring underground. The same basic technology can help locate a valve when its box has become buried beneath grass or soil.
Can Sprinkler Wiring Be Repaired?
Yes. Damaged sprinkler wiring can often be repaired.
The first job is finding the damaged section. Once you locate it, the repair may involve removing the damaged portion and reconnecting the wires with proper waterproof connections.
A small, accessible break can be fairly straightforward.
Multiple breaks, deteriorated wiring, or extensive underground damage can make replacement a better option. The condition and location of the wire will help determine the right repair.
Don’t overlook waterproofing.
A repair that works perfectly today won’t help much if moisture gets into the splice and causes the same problem next year.
Preventing Sprinkler Wire Problems
You can’t prevent every electrical problem, but a little planning can protect your irrigation wiring.
Keep valve boxes accessible and in good condition. Replace damaged lids that allow excessive dirt and debris into the box. Use waterproof connectors for underground wiring connections.
You should also know where major irrigation components are located before digging.
A few other simple steps help:
- Mark irrigation components before landscaping projects.
- Create a basic map of your sprinkler system.
- Record valve-box locations.
- Keep underground wiring properly protected.
- Check irrigation problems when they first appear.
Don’t ignore a zone that works one day and refuses to work the next. Intermittent operation can be an early warning that a connection or electrical component is starting to fail.
Having Trouble With a Sprinkler Zone?
A sprinkler zone that won’t run doesn’t automatically mean you need a new valve.
The problem could be the controller. It could be the solenoid. You may have a broken wire or corroded connection hiding underground.
Lawn Sense can inspect your irrigation system, track down the source of the problem, and determine what actually needs to be repaired. That means less guessing and less unnecessary digging around your lawn.
Frequently Asked Questions
How Long Does Sprinkler Wire Last?
Sprinkler wire can last for many years when it is properly installed and protected. There isn’t one lifespan that applies to every system. Moisture intrusion, poor connections, digging, soil movement, and physical damage can shorten its life considerably.
Can Sprinkler Wire Go Bad Underground?
Yes. Underground sprinkler wire can become damaged by digging, soil movement, moisture, roots, animals, or normal aging. Connections and splices are also common failure points because moisture can cause corrosion if they aren’t properly protected.
How Do You Find a Break in Sprinkler Wiring?
Start by checking the controller, accessible wiring connections, and valve solenoid. Electrical testing can help determine whether the circuit has a break. Wire tracers and underground fault-locating equipment can then help narrow down the location of hidden wiring problems.
Can a Sprinkler Valve Work With a Broken Wire?
The valve may still work manually, but a broken control wire can prevent the controller from opening it automatically. The controller needs a complete electrical circuit through the wiring and solenoid to operate the valve normally.
Why Does One Sprinkler Zone Have No Power?
One sprinkler zone may have no power because of a loose controller connection, damaged zone wire, corroded splice, bad solenoid, or controller problem. If every other zone works, troubleshooting should focus on the electrical circuit serving the affected zone.
Can Water Damage Sprinkler Wiring?
Yes, but properly installed irrigation wiring is designed for outdoor conditions. Problems often develop when water reaches exposed conductors through damaged insulation or poorly protected wiring connections. This can cause corrosion and eventually interrupt the electrical circuit.
